Thursday 21 July 2011




Brain-Controlled Wheelchair An easy guide from


jerkey

Brain-Controlled Wheelchair


The parts of this system include an electric wheelchair, a laptop computer, an Arduino, an interface circuit, an EEG headset, and a collection of ready-made and custom software.


The software which was written specifically for this project (including the GUI and Arduino sketch) has been bundled with Puzzlebox Brainstorms, and is released freely under an Open Source license.


The EEG headset, which connects wirelessly to the laptop, allows the operator to simply think "forward" or "left" or "right" to cause the wheelchair to move.  Performance is related to practice by the user, proper configuration of the software, and good contact made by the EEG electrodes on the scalp of the operator.


The interface circuit connects between the Arduino's digital pins and the joystick of the wheelchair.  When the Arduino receives a command from the computer, it causes the circuit to "fool" the wheelchair into thinking that the operator has moved the joystick.


WARNING:  Electric wheelchairs are designed for trained operators who have practised manoeuvring safely.  Electric wheelchairs can weigh upwards of 200 pounds EMPTY!  They have no mechanism to stop when they hit a human or an animal, or go off a curb or down stairs or right through a bannister.  Make sure no one is in the path of a wheelchair which is not being operated by a human who can operate the OFF switch.  Make sure everyone in the vicinity of this Instructable realizes what may happen if they don't get out of the way.


Do not attempt to stop an electric wheelchair with your body.

Step 1Acquire materials


 electric wheelchair,


an EEG Headset, (We used an Emotiv wireless headset
Laptop Computer, an Arduinoand an interface circuit


The EEG Headset is an EPOC acquired from Emotiv.  Their site is here:
http://www.emotiv.com/




Step 2Software


Software


The Software necessary includes the Puzzlebox Brainstorms BCI (Brain-Computer Interface) package which provides a GUI and visual feedback to the user and issues control commands to the Arduino hardware. Also required is the standard drivers and software included with the Emotiv EEG headset as well as an Aurduino Sketch which is a simple program written by us for an Arduino.

An optional Python-based backend control script can operate independently of the Puzzlebox Brainstorms GUI (see Step 7) and will translate keypresses entered on the keyboard into commands sent to the Arduino, which is connected to the interface circuit. The interface circuit makes the wheelchair move by simulating someone pushing on the joystick. This option is useful for controlling the wheelchair remotely via SSH session from another computer or device such as a mobile phone. Thebackend control script can be found here:
http://brainstorms.puzzlebox.info/tracker/browser/trunk/Puzzlebox/Brainstorms/Wheelchair_Control.py





And a suitable Python interpreter can be found here:http://www.python.org/download


The Puzzlebox Brainstorms software runs alongside the Emotiv headset's Control Panel andEmoKey application, which allows the wearer of the headset to cause characters to be "typed" on the laptop when a learning algorithm matches the user's current brainwave patterns to previously trained sequences.These "typed" characters activate buttons displayed in the Puzzlebox Brainstorms GUI (or the backend control script) which tells the Arduino to activate the Interface Circuit which simulates someone pushing on the joystick, which causes the wheelchair to move.  The Puzzlebox Brainstormssoftware can be found here:
http://brainstorms.puzzlebox.info/static.php?page=downloads

There are two programs from Emotiv which we will use for this project: Emotiv Control Panel and EmoKey. Both are available to download freely as part of their "SDKLite" software pack:
http://www.emotiv.com/store/sdk/edition/sdklite/


The Arduino Sketch is a program which is loaded into the Arduino hardware using free software from the Arduino site.  The program watches for a series of characters coming in the USB serial port from the computer.  When it sees the letter "x" it watches the next eight characters that come through, and they correspond to eight pins on the Arduino.  If a character is "1" then that pin is set to ON, and outputs 5 volts, otherwise the pin is turned OFF and outputs zero volts.
The Arduino sketch can be found here:
http://brainstorms.puzzlebox.info/tracker/browser/trunk/arduino/puzzlebox_brainstorms_wheelchair_noisebridge/puzzlebox_brainstorms_wheelchair_noisebridge.pde

To load the above program into the Arduino, you need the Arduino software, found here:
http://arduino.googlecode.com/files/arduino-0021.zip

You might also need drivers for the USB serial interface on the Arduino, depending on your operating system and which version of the Arduino you own.  Details at:
http://arduino.cc



Step 3Test the wheelchair

Test the wheelchair



Step 4Modify the wheelchair's joystick


Modify the wheelchair\

To control the wheelchair electronically, we need to make a connection to its joystick.  The joystick is a pair of variable resistors, one for forward/backward and another for left/right.  Each variable resistor is connected between two voltages; one approximately zero and the other around 12 volts.



Step 5Build the Interface Board


Build the Interface Board

The interface board takes eight control lines in, from an Arduino or a PC parallel port, and can make the wheelchair think the joystick is being moved.  It does this using transistors, some diodes and a bunch of resistors.  All of these parts can be found at mouser.com or digikey.com or several other suppliers.  Since the transistors (2N7000) are FETs, they draw no current (although their default-mode resistors take a milliamp or so) so they can be driven from any digital control signal.  The diodes we used are 1N4148.

A datasheet for the 2N7000 transistor can be found here:
http://www.fairchildsemi.com/ds/2N/2N7000.pdf

The circuit contains eight transistors. Two of them pull the forward/backward wire toward ground through a resistor each. One has a larger resistor and the other a smaller one. When both transistors are turned on, both resistors are pulling toward ground, representing maximum speed in that direction.  Another two transistors are used the same way for the left/right wire.

The other four transistors are connected between ground and a resistor to the 12 volt power supply. These transistors are normally on, and their drain terminal is connected through a diode to the forward/backward or left/right wire. When these transistors are turned off, the resistor is no longer pulled toward ground and the joystick wire gets pulled toward the +12v wire through the diode.

This is an easy way to let an eight-bit TTL (0 / 5V diigtal) controller like the PC parallel port or 8 pins of an Arduino control the 12-volt analog wheelchair joystick. In actual practice (as you can see by looking at the schematic and the actual circuit) the resistor values have to be chosen to achieve values which will not cause the wheelchair brain to think there is a malfunction in the joystick. (the 41K and 6.8K resistors are to pull the transistors' inputs to their default state, so the joystick works normally when nothing is plugged into the interface boards' input side).



Step 6Program and connect the Arduino


Program and connect the Arduino




You will need to download and install the Arduino software onto your computer.  This is the program which will let you load the Sketch onto your Arduino which will make it perform its function in this system.  The Arduino software communicates to the Arduino through a serial port which appears to your computer after the USB interface is plugged in.

If the Arduino is plugged in and your computer can't figure out that it is a serial port, you will need to download a driver from the Arduino website.

You will also need the sketch we have written for this application.

All of the above software is linked in Step Two of this instructable.

Once you have the Arduino software running, and it recognizes your Arduino hardware (which is plugged into your computers' USB port) you will need to load the sketch we have written using the File menu.  Then go to the Tools menu and select "Board" and choose the model of Arduino you have.  The Diecimila, Duemilanove or Uno are very similar and any of them would work for this application.  Next, from the Tools menu, make sure the Serial Port of your Arduino is selected.

At this point, with our sketch loaded, you can go to the File menu and select "Upload to I/O board" to load the sketch into your Arduino.  After this step works, you can quit the Arduino program.  You won't need it again unless you want to change the way your Arduino operates, and it shouldn't be running while the Python program is running.

After this, you will need to make a connector to go between the Arduino and the interface board which controls the joystick of the wheelchair.  We used pins 10, 2, 3, 4, 5, 6, 7, 8, of the Arduino and connected them to pins 2, 3, 4, 5, 6, 7, 8 and 9 of the DB25F connector from the interface board.  We also connected Ground from the Arduino to pin 18 of the DB25F connector.

If it is not obvious at this point, you can skip the whole DB25 connector and just wire directly from the Arduino to the transistors on the interface board.  Our setup is the result of originally using the parallel port of the PC instead of an Arduino (which is still an option if you have a parallel port and don't want to use an Arduino)

Program and connect the Arduino


Step 7Install the Python interpreter and program


Install the Python interpreter and program

NOTE: The Puzzlebox Brainstorms software includes the console-based Python program described in this step. Strictly speaking it should not be necessary to download the Python interpreter or any of the software's dependencies (the Windows version mentioned in Step 8 is pre-compiled and packaged), but it is assumed anyone who wishes to leverage this software for a new type of wheelchair will need to know how to control everything from a source code level, so we have included these details for completeness.


Download and install the Python interpreter and download the Python program, listed in Step Two of this Instructable.

You may have some trouble configuring the program for the correct serial port of your Arduino, especially if your computer already has a serial port.

Make sure the Arduino is plugged in and run the program using the Python interpreter.  If you press direction keys such as i j k m, you will see the built-in LED on the Arduino turn on or off because it is wired (in software) to one of the output lines to the interface board.

At this point you can connect the Arduino to the interface board.  Prop the wheelchair up so its wheels are not touching the ground, or if you can (and we did) disengage the wheel clutches.  This way, when the motors turn, they don't actually cause the wheelchair to move (although it no longer is braked in place and could roll).

If you turn on the wheelchair, the lights should come on normally and indicate that the wheelchair is ready to be moved.  Moving the joystick should cause the brakes to click off and the motors to try to move the chair.


Step 8Install the Puzzlebox and Emotiv software


Install the Puzzlebox and Emotiv software

Puzzlebox Brainstorms is an open source BCI (Brain-Computer Interface) software package which allows control of various robots and vehicles via EEG. Version 0.4.5 of the software was updated to control the Action Arrow Storm Series wheelchair featured in this Instructable.

The software has been pre-packaged for Linux and Windows and is available for download at the website: (this was listed in Step 2)

http://brainstorms.puzzlebox.info/static.php?page=downloads

The software should be entirely compatible with Mac OS X, however it has not been packaged or tested with that operating system.


There are two programs from Emotiv which we will use for this project:

Emotiv Control Panel

and

EmoKey

Both are available to download freely as part of their "SDKLite" software pack:
(this was listed in Step 2)


Step 9Train the software and the human operator


Train the software and the human operator

To drive and control the wheelchair via EEG we will use the Emotiv Control Panel application to perform detections of the user's intent, turn those detections into keystrokes using EmoKey, and use those keystrokes to actually drive the wheelchair using Puzzlebox Brainstorms.

To begin, load the Emotiv Control Panel program and select or enter a user name for your user's profile. We'll be using the "Cognitiv" function of this software which is effectively a learning algorithm. The user will need to train the software to recognize their "Neutral" state - that is the user should sit still, and look away from the screen, clear their mind and try not to think about anything in particular. Then the user should select a direction to move a floating box on the screen, for example they can "Push" the box away from themselves or "Lift" it up in the air. Once trained, the software will attempt to detect the difference which occurs in the user's brainwaves between the neutral state and the patterns which occur when the user thinks about moving the box.

In our experience the Emotiv software is very good at training at least one direction direction for control, for example thinking "Push" to drive the wheelchair forward, and allowing that user to "turn on" or "turn off" that single command at will. However it seems that most if not all users have trouble training a second or third direction as effectively as the first. For this reason it is recommended when first using the software to "cheat" for left and right control by using facial muscles (which is technically EMG, not EEG) for example closing one eye to move left or right or clenching either side of the jaw.


Next we will use the EmoKey software to translate the detections made by the Emotiv Control Panelinto keystrokes which send to Puzzlebox Brainstorms which in turn controls the wheelchair.

An example file is available which uses "Push" to drive the wheelchair forward whenever the meter rises above 30% and issues a "Stop" command whenever the meter drops back below that level:

http://brainstorms.puzzlebox.info/tracker/browser/tags/brainstorms/release-0.4.5/emokey/puzzlebox_brainstorms-wheelchair.ekm

Step 10Practice makes perfect


Practice makes perfect
Reade more >>

RGBike POV - Open project


RGBike POV - Open project


RGBike POV - Open project




RGBike POV - Open project

RGBike POV - Open project

This project features:
  • 16 RGB (Red+Green+Blue) Light Emitting Diodes;
  • Arduino compatibility (Suposedely, I'll have to check that later);
  • Single layer printed circuit board, suitable for home fab;
  • All through hole componentes, suitable for beginners;
  • Hall effect sensor, for image synchronization;
  • Least number of componentes possible;
  • Unfortunately, only one side of the wheel is illuminated (check update).
  • Fits 26" wheels, I haven't had opportunity to try it in 20" and 24" wheels.
This project is also a open project. Anyone who wishes to participate is welcome. The contributions will be added to this PROJECT and published.
Reade more >>

Spoke POV Lights


HOW TO TURN YOUR CYCLE WHEEL TO

  Spoke POV Lights



Ghetto Spoke POV Lights

Step 1Stuff you'll need


Stuff you\

  • 1 or 2 Light Stick thingy
  • A Hot Glue Gun (with glue sticks)
  • Some Cable Ties
  • A Philips Screw Driver
  • A Dremel Rotary Tool, or anything else you use to cut plastic
  • A Roll of Electric Tape
  • A Bicycle, obviously

Step 2"If you can't open it you don't own it"

"If you can\


Step 3Modify the handle

Modify the handle

Step 4Glue everything back

Glue everything back

Step 5

mmmm, hot glue...

Step 6


It\

Tie everything up.

Tie everything up.

Strap the holder/circuit to the hub of your wheel and the LED string on a spoke.

Cut all the cable ties and your done!
Reade more >>

Simple IF Signal Generator

Here is a versatile circuit of IF signal generator which may be of interest to radio hobbyists and professionals alike.Transistors T1 and T2 form an astable multivibrator oscillating in the audio frequency range of 1 to 2 kHz. RF oscillator is built around transistor T3. Here again a 455kHz ceramic filter/resonator is employed for obtaining stable IF. The AF from multivibrator is coupled from collector of transistor T2 to emitter of transistor T3 through capacitor C3. The tank circuit at collector of transistor T3 is formed using medium wave oscillator coil of transistor radio, a fixed 100pF capacitor C5 and half section of a gang capacitor (C6).
The oscillator section may be easily modified for any other intermediate frequency by using ceramic filter or resonator of that frequency and by making appropriate changes in the tank circuit at collector of transistor T3. Slight adjustment of bias can be affected by varying values of resistors R6 and R7, if required



Reade more >>

Wednesday 20 July 2011




This FM radio-controlled anti- theft alarm can be used with any vehicle having 6- to 12-volt DC supply system. The mini VHF, FM transmitter is fitted in the vehicle at night when it is parked in the car porch or car park. The receiver unit with CXA1019, a single IC-based FM radio module, which is freely available in the market at reasonable rate, is kept inside. Receiver is tuned to the transmitter's frequency. When the transmitter is on and the signals are being received by FM radio receiver, no hissing noise is available at the output of receiver. Thus transistor T2 (BC548) does not conduct. This results in the relay driver transistor T3 getting its forward base bias via 10k resistor R5 and the relay gets energised. When an intruder tries to drive the car and takes it a few metres away from the car porch, the radio link between the car (transmitter) and alarm (receiver) is broken. As a result FM radio module gene-rates hissing noise. Hissing AC signals are coupled to relay switching circ- uit via audio transformer. These AC signals are rectified and filtered by diode D1 and capacitor C8, and the resulting positive DC voltage provides a forward bias to transistor T2. Thus transistor T2 conducts, and it pulls the base of relay driver transistor T3 to ground level. The relay thus gets de-activated and the alarm connected via N/C contacts of relay is switched on. If, by chance, the intruder finds out about the wireless alarm and disconnects the transmitter from battery, still remote alarm remains activated because in the absence of signal, the receiver continues to produce hissing noise at its output. So the burglar alarm is fool-proof and highly reliable.


Reade more >>

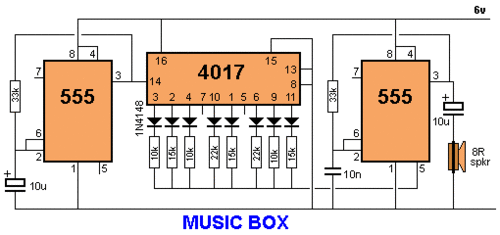

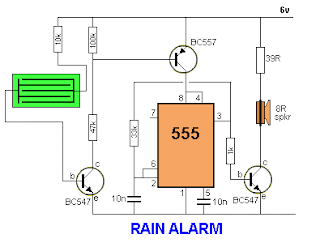

47 projects with
                   a 555!





















































Reade more >>
